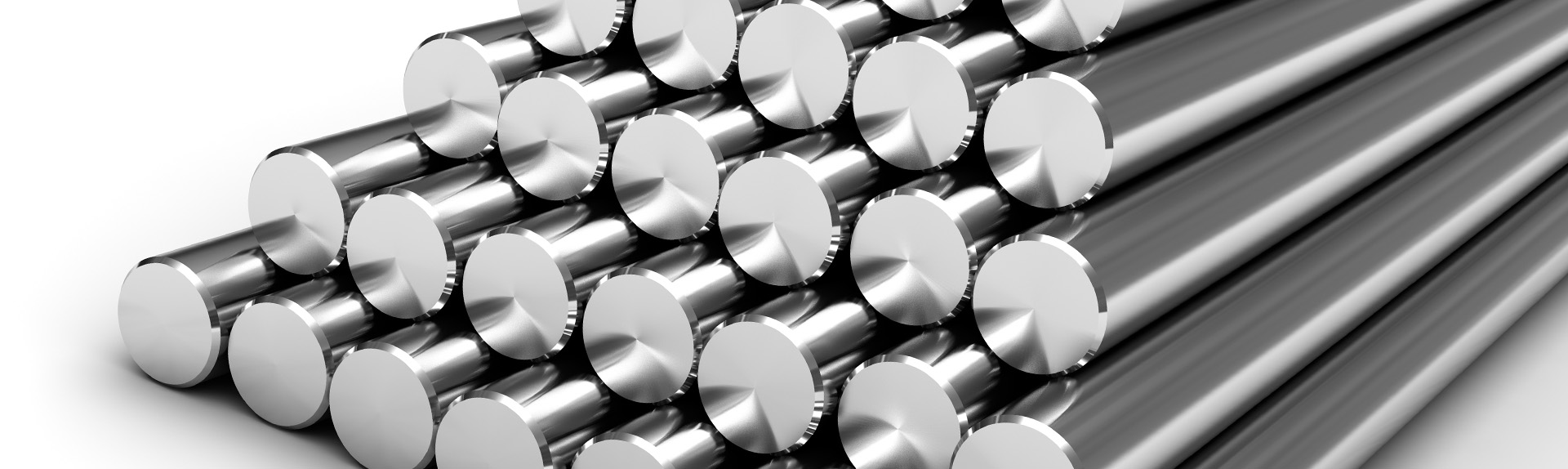

PASLANMAZ ÇELİK ÇUBUK

Yuvarlak Çubuklar
φ [mm]	Ağırlık [kg/m]
2	0.025	27	4.494	90	49.930	260	416.701
3	0.055	28	4.833	95	55.632	270	449.371
4	0.099	30	5.548	100	61.642	280	483.274
5	0.154	32	6.312	105	67.960	285	500.688
6	0.222	34	7.126	110	74.587	290	518.410
7	0.302	35	7.551	115	81.522	300	554.779
8	0.395	36	7.989	120	88.765	320	631.215
9	0.499	38	8.901	125	96.316	330	671.283
10	0.616	40	9.863	130	104.175	340	712.583
11	0.746	42	10.874	140	120.819	350	755.116
12	0.888	45	12.483	150	138.695	360	798.882
13	1.042	48	14.202	160	157.804	380	890.112
14	1.208	50	15.411	165	167.821	400	986.274
15	1.387	52	16.668	170	178.146	410	1036.204
16	1.578	55	18.647	180	199.720	420	1087.367
17	1.781	58	20.736	185	210.970	430	1139.763
18	1.997	60	22.191	190	222.528	440	1193.392
19	2.225	65	26.044	200	246.569	445	1220.668
20	2.466	68	28.503	210	271.842	460	1304.347
22	2.983	70	30.205	220	298.348	480	1420.235
24	3.551	75	34.674	230	326.087	500	1541.053
25	3.853	80	39.451	240	355.059
26	4.167	85	44.536	250	385.263
Kare Çubuklar
A [mm]	Ağırlık [kg/m]
5	0.196	14	1.539	25	4.906	45	15.896
6	0.283	15	1.766	30	7.065	50	19.625
8	0.502	16	2.010	32	8.038	55	23.746
10	0.785	20	3.140	35	9.616	60	28.260
12	1.130	22	3.799	40	12.560	70	38.465
Altıgen Çubuklar
S [mm]	Ağırlık [kg/m]
5	0.170	13	1.149	27	4.956	60	24.473
6	0.245	14	1.332	30	6.118	65	28.722
7	0.333	15	1.530	32	6.961	70	33.311
8	0.435	16	1.740	36	8.810	75	38.239
9	0.551	17	1.965	41	11.428	80	43.508
10	0.680	19	2.454	46	14.385	90	55.065
11	0.823	22	3.290	50	16.995
12	0.979	24	3.916	55	20.564
